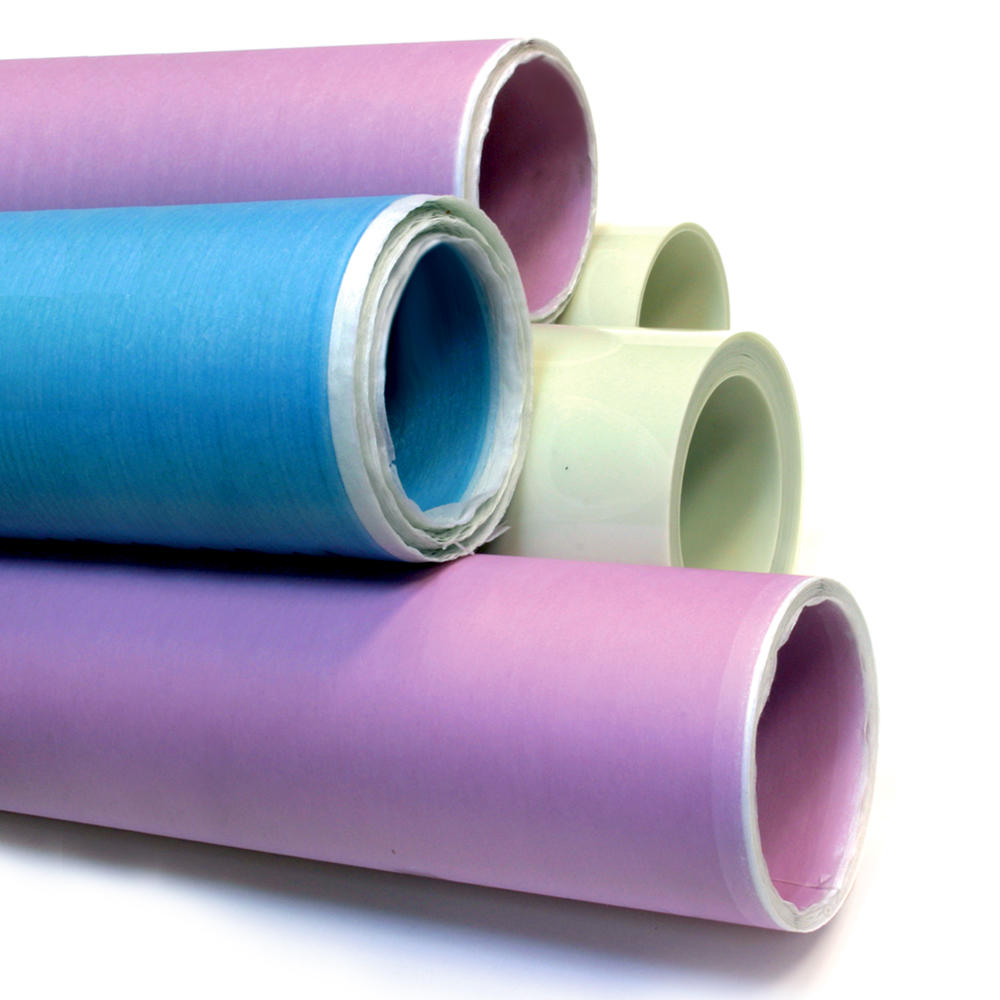

Presspan, polyester film, polyester film laminated
Dielectric strength 25°C 280KV/mm
Dielectric strength 150°C 200KV/mm
Dielectric constant 3.30
Dissipation factor 0.0025
Volume resistivity 1x1018 cm
Surface resistivity 1x1016 cm
Melting point 250°C – 265°C
Working temperature -60°C/+150°C
|
PRESSPAN - POLYESTER FILM |
||||
|
Composition / Type |
Overall thickness mm |
Construction |
Nominal weight g/m2 |
Dielectric strength KV |
|
Presspan |
0,13 |
4/1 |
155 |
6 |
|
0,18 |
6/1 |
215 |
6 |
|
|
0,23 |
8/1 |
270 |
6 |
|
|
0,28 |
10/1 |
325 |
6 |
|
|
0,33 |
12/1 |
385 |
6 |
|
|
0,38 |
14/1 |
440 |
6 |
|
|
Presspan Polyester film 50 Micron S/50 |
0,15 |
4/2 |
190 |
8 |
|
0,20 |
6/2 |
245 |
8 |
|
|
0,25 |
8/2 |
305 |
8 |
|
|
0,30 |
10/2 |
360 |
8 |
|
|
0,35 |
12/2 |
420 |
8 |
|
|
0,40 |
14/2 |
480 |
8 |
|
|
Presspan |
0,25 |
4/2/4 |
310 |
7 |
|
0,35 |
6/2/6 |
420 |
8 |
|
|
0,45 |
8/2/2 |
570 |
9 |
|
|
0,55 |
10/2/10 |
680 |
10 |
|
|
POLYESTER FIBERMAT/LAMINATED FILM 70% |
||||
|
Type |
Overall thickness mm |
Construction |
Nominal weight g/m2 |
Dielectric strength KV |
|
D50 |
0,15 |
2/2/2 |
140 |
6 |
|
D75 |
0,18 |
2/3/2 |
190 |
7 |
|
D100 |
0,20 |
2/4/2 |
220 |
9 |
|
D125 |
0,23 |
2/5/2 |
260 |
10 |
|
D190 |
0,30 |
2/7 1/2/2 |
350 |
15 |
|
D250 |
0,35 |
2/10/2 |
425 |
18 |
|
D350 |
0,45 |
2/14/2 |
560 |
22 |
|
POLYESTER FIBERMAT/LAMINATED FILM 100% |
||||
|
Type |
Overall thickness mm |
Construction |
Nominal weight g/m2 |
Dielectric strength KV |
|
D50 |
0,15 |
2/2/2 |
160 |
8 |
|
D75 |
0,18 |
2/3/2 |
200 |
9 |
|
D100 |
0,20 |
2/4/2 |
235 |
11 |
|
D125 |
0,23 |
2/5/2 |
275 |
12 |
|
D190 |
0,29 |
2/7 1/2/2 |
370 |
15 |
|
D250 |
0,35 |
2/10/2 |
445 |
17 |
|
D350 |
0,45 |
2/14/2 |
580 |
20 |
