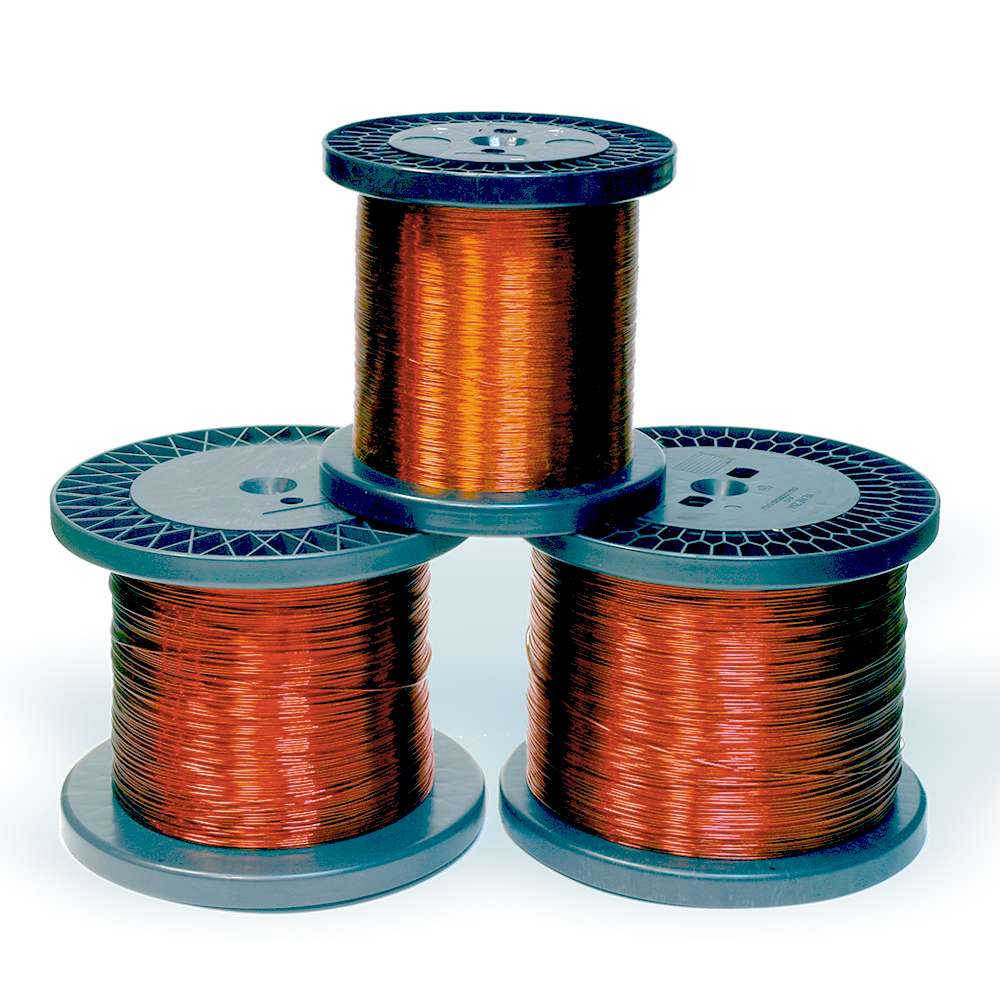

Wire coated with thin layer of insulation
Classified by diameter (0,02-5,00mm), insulation thickness and temperature class.
STANDARD DIAMETERS
0,020 - 5,000 mm
0,020 - 5,000 mm
IEC 317-13
| Specification | Termic insulation class: H (210°C) |
| High flexibility | |
| FREON resistance 12-22-134 | |
| Certificates | ISO 9000, UL |
| Dimensions | G2 - from 0,10 mm to 4,00 mm |
| Packaging | K160, K200 (8-13kg), K250 (10-20kg) |
| >2,00 K315, K355 (cca 30-50 kg) | |
IEC 317-20
| Specification | Termic insulation class: F (155°C) |
| High flexibility | |
| FREON resistance 12-22-134 | |
| Certificates | ISO 9000, UL |
| Dimensions | G1 - from 0,050 mm to 2,00 mm |
| Packaging | K125, K160, K200 (8-13kg), K250 (10-20kg) |
